Quantum Key Distribution: Unbreakable ISO 8583 Financial Networks

Imagine a hacker trying to intercept an ISO 8583 payment message, but the sheer act of looking at the data instantly destroys the message and alerts the bank. This isn’t science fiction—it’s Quantum Key Distribution (QKD).

As quantum computers inch closer to breaking modern encryption, the financial industry is looking beyond algorithmic math towards the fundamental laws of physics to secure our payment networks.

What is Quantum Key Distribution (QKD)?

Quantum Key Distribution (QKD) is a secure communication method that uses quantum mechanics to exchange cryptographic keys. Unlike traditional encryption (like RSA or ECC) which relies on complex mathematics, QKD relies on the physics of photons (particles of light).

In payment systems, QKD isn’t used to encrypt the entire ISO 8583 message payload. Instead, it’s used to securely distribute the symmetric keys (like AES-256 or 3DES keys) that banks and networks use to encrypt the actual data transmission lines.

Because QKD uses quantum states, any attempt by an eavesdropper to intercept the key alters its quantum state. The sender and receiver immediately know the line is compromised before any sensitive payment data is sent. The most common method for this is the BB84 protocol (developed in 1984), which forms the foundation of modern QKD schemes.

Also Known As…

When researching quantum security in fintech, you’ll encounter these related terms:

How QKD Works in Financial Networks

Here is how QKD creates an unbreakable link between an acquiring bank and a payment gateway:

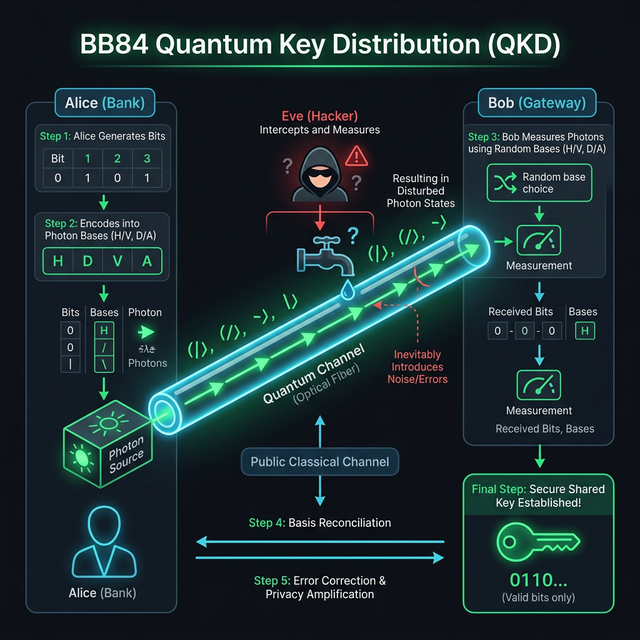

Visualizing the BB84 Protocol

Step 1: Sending the Photons

The sender (Bank A) transmits a stream of single photons over a fiber-optic cable to the receiver (Payment Network). Each photon is polarized in a specific quantum state representing a 1 or a 0.

Step 2: Measuring the States

The receiver measures the incoming photons using a matching set of quantum filters. Because of the laws of quantum mechanics, they can determine the sequence of 1s and 0s.

Step 3: Key Sifting

Acting as a quantum sieve, the sender and receiver compare notes over a public, unencrypted channel about how they measured the photons, but not what the measurements were. They discard mismatched measurements, and the remaining sequence becomes the shared secure key.

Step 4: Encrypting the ISO 8583 Traffic

Once the secure symmetric key is established, Bank A uses it to encrypt the high-speed ISO 8583 traffic using standard fast algorithms like AES-256.

Try it yourself: See how symmetric keys are used to encrypt HEX blocks in our AES Calculator.

Worked Example: A QKD-Secured ISO 8583 Transmission

Let’s look at how a QKD system secures an authorization request (0200 MTI):

1. Key Generation: Bank and Gateway use QKD to generate a new AES-256 session key: 7F8A9B2...
2. Eavesdropper Interception: A hacker tries to steal the key by tapping the fiber-optic line.
3. Quantum Collapse: The hacker’s observation collapses the photons’ quantum states. The measurement error rate spikes.
4. Connection Dropped: The QKD system detects the spike, drops the compromised key, and halts the connection.
5. Failover: The system switches to a backup secure route before the 0200 message is ever transmitted.

The hacker gets nothing but garbage data, and the bank knows exactly when and where the tap occurred.

QKD vs. Post-Quantum Cryptography (PQC)

It’s crucial to understand the difference between QKD and PQC in payment systems:

Limitations of QKD in Fintech

While QKD offers theoretical perfection, it has practical limitations:

• Distance Constraints: Photons degrade over long distances. Current commercial QKD over fiber is generally limited to around 100-150 km. To bridge cross-country data centers, researchers are actively building “Trusted Node” networks and exploring satellite-based QKD.
• Hardware Requirements: It requires dedicated dark fiber and expensive specialized lasers and detectors. It cannot be deployed purely via a software update.
• Not for Point-of-Sale: You can’t put a QKD laser in a merchant’s credit card terminal. It is strictly for securing the backbone trunks between major data centers.

Next Steps

Quantum Key Distribution is the ultimate endgame for securing the backbone of financial networks. To continue exploring payment security:

1. Test your encryption: Use our AES Calculator or 3DES Calculator to understand symmetric encryption.
2. Understand the transition: Read our Post-Quantum Cryptography in Payments guide to see how software is adapting right now.
3. Explore Key Management: See our DUKPT Key Management Explained or HSM Basics for Developers to learn how keys are derived safely.
4. Parse the data: Once the connection is secure, use the ISO 8583 Studio to decode the actual payment messages.
5. Decode EMV Data: Check our EMV Tag Inspector for analyzing secure chip data.

This post is part of the ISO 8583 Mastery series. Follow along as we explore payment messaging in depth.
